Loft conversion

We Specialise in Loft Conversions, we can take you from concept to completion. We have our own designers, to get you through planning, right through to your fittings and fixtures.

Loft conversion

Loughton
2021

Originally a 2 bedroom property we were given the task of converting this loft space into a further 2 bedrooms, with an additional w/c making it a 4 bedroom house.

In doing so, we had to lower the 1st floor ceiling height, to give us the additional height to the ridge and remove a chimney breast down to the ground floor.

Loft conversion
Loft conversion
Loft conversion

A few Before Shots

Loft conversion
Loft conversion
Loft conversion

Soft Strip out Begins

Loft conversion

Chimney breast removed

Loft conversion

Steel Pockets Cut

Loft conversion

Ceilings Dropped ready to remove rear section of roof and ceiling joists.

Loft conversion

Steels Installed

Loft conversion

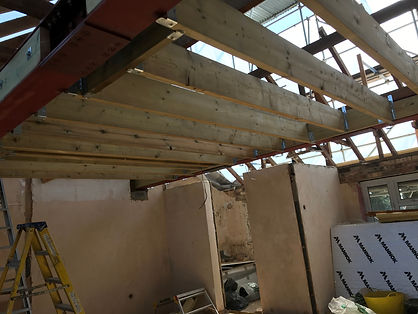

First Few Joists Installed

Loft conversion

Structural Flooring being laid

Loft conversion

Ridge Beam Installed

Loft conversion

Joist Installation Complete

Loft conversion

Flooring Completed Big Changes

Loft conversion

We now begin to form the external walls of the dormer of the loft, and as you can see all our work is spot on level!

Loft conversion
Loft conversion

External Walls beginning to take shape.

Loft conversion
Loft conversion
Loft conversion
Loft conversion

The walls are then sheathed, using structural hardwood plywood, before a cement based master board which acts as a fire resistant barrier to the neighbouring properties.

Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion

The Flat roof joists are then fitted bearing on to external walls and into Hangers connected to the Ridge beam Steel.

Loft conversion
Loft conversion

Firring pieces are then fitted to create the falls on the flat roof to control the flow of water.

As a Cold Roof detail was used we then Insulate between the joists before Sheathing the flat roof.

Once Sheathing is complete Fascia and soffit are installed with ventilation ready for the roof Coverings and windows.

Loft conversion
Loft conversion
Loft conversion

We then begin to progress inside, Stud Partitions are constructed aswell as insulating the external walls.

Loft conversion
Loft conversion
Loft conversion
Loft conversion

Stud Walls are Constructed on the 1st floor ready for services before insulation and boarding.

Loft conversion
Loft conversion

Stair Case Installed

Loft conversion
Loft conversion
Loft conversion
Loft conversion

We Begin Closing up and prepare all surfaces for plastering.

Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion

Bathroom Preparation for Tiles, Remove loose plaster.

Remove old floor boards and replace with T&G Moisture resistant before laying a cement based tile underlay.

Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion

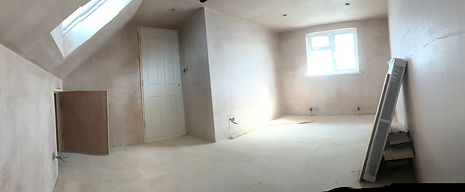

Plastering complete, 2nd Fix Carpentry works begin along with a mist coat.

Loft conversion
Loft conversion
Loft conversion

Starting to take shape as the 2nd Fix comes to end, flooring and tiling to follow.

Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion

With the Finishes being installed and the scaffolding

being dropped all our hardwork is revealed.

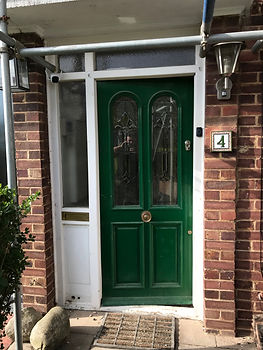

New Front Door installation along with a beautiful

brushed oak herringbone flooring, in the living room.

Voila!

the finished product.

Finished Herringbone Flooring along with a beatiful hand made unit, to be used for storage and hide the electrical consumer unit.

Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion
Loft conversion

Tiles laid in 1/3 brick bond pattern in a new elegant family bathroom.

New laminate flooring laid throughout 1st floor bedrooms.

Clean lines transforming the space into a new 4 bedroom home.

A small W/C we managed to fit on top floor.

2 bed transformed into a new and improved 4 bedroom.
